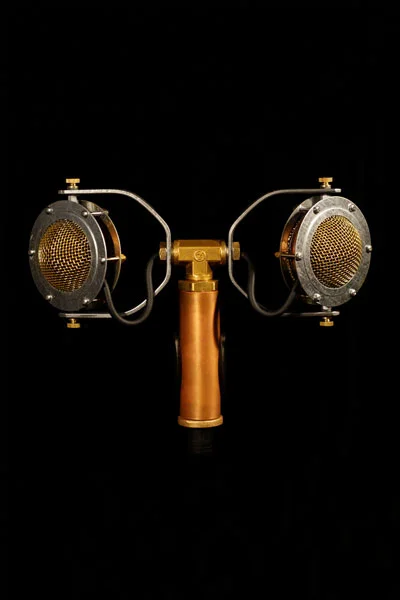

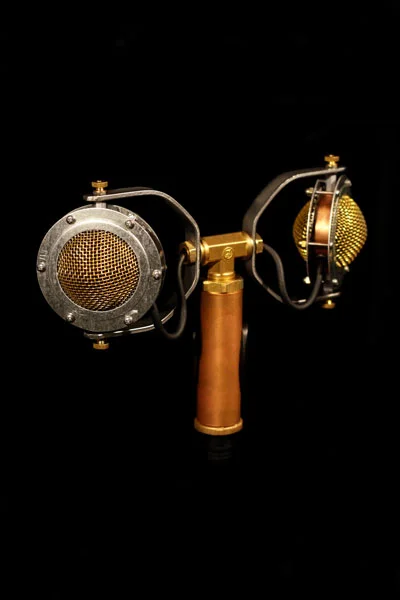

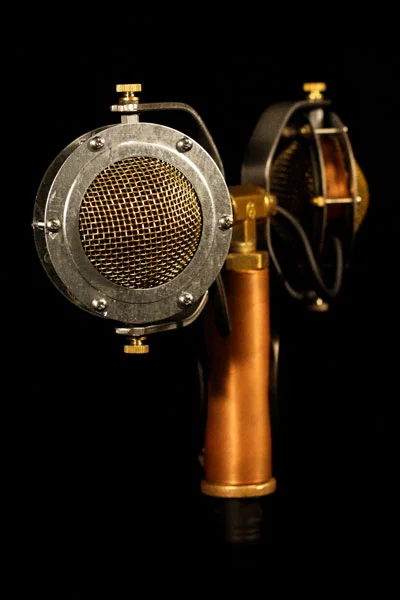

Evelyn is a stereo mic consisting of two closely matched large diaphragm capsules mounted in individually pivoting head baskets spaced at the correct distance for the ORTF stereo recording technique. Both the capsules and the JFET transistors for each side of the stereo pair are exactingly hand-matched for perfect stereo imaging. The electronics are hand-wired using the finest components, and the result is spectacularly natural stereo sound.
Evelyn makes an easy-to-deploy stereo drum overhead or room mic, but she is also adept at many applications beyond standard stereo miking. With her heritage from the acclaimed Ear Trumpet Labs Edwina, one of the finest live mics available, Evelyn makes an ideal live miking solution for acoustic ensembles from traditional bluegrass bands to string quartets, with great feedback control and off-pattern rejection.
Of course the striking design of Evelyn complements the stunning sound; everyone will be pleased to work with her, and on a live stage she looks distinctive and gorgeous. Our solid designs are hand made from copper plumbing pipe and fixtures, electrical flanges, brass, and stainless steel.
Each mic includes a standard 5-pin XLR to dual 3-pin XLR adapter cable, and the pinout is standard so other stereo cables can be used. Each Evelyn comes in a solid metal tool case with hand-cut foam lining.
$1499
FEATURES
Hand made studio and live stereo condenser microphone with unique appearance
Dual fixed-cardioid large (26mm) diaphragm condenser capsules mounted in pivoting heads, spaced ideally for ORTF stereo
1" body fits standard microphone clips
Internal shock dampers for minimal handling noise
Integral silk and mesh pop filter, for effective control of plosives without loss of clarity
Transformerless FET fully balanced electronics
Highest quality hand-wired electronic components - film caps, precision resistors, hand tested and matched transistors, with component values tuned for the individual circuit.
SUGGESTED APPLICATIONS
Studio or live use for stereo micing vocal or instrumental ensembles, drum overheads, or individual performers
Notable Users
Old Crow Medicine Show, The Show Ponies
TECHNICAL SPECS:
TRANSDUCER TYPE: condenser, large (26 mm) diaphragm
POLAR PATTERN: cardioid
SENSITIVITY: (re 1000Hz, 94 dB): -40.9 dB (9mV/Pa)
OUTPUT IMPEDANCE: <50 Ohm
NOISE FLOOR: <8 dBA
POWER REQUIREMENT: +24V to +48V phantom power
WEIGHT: 1 lb (7 lbs cased)
DIMENSIONS: 7” x 11” x 1 3/4”; heads are 3” in diameter
PIN-OUT: 5-pin-to-two-3-pin stereo cable:
pin 1 → pin 1 on both connectors, signal ground and tied to shield
pin 2 → pin 2 (hot) channel 1 (left)
pin 3 → pin 3 (cold) channel 1 (left)
pin 4 → pin 2 (hot) channel 2 (right)
pin 5 → pin 3 (cold) channel 2 (right)
SKU: ETL-EVELYN
ACCESSORIES:
INCLUDED
Metal tool case with foam padding, 15" x 10" x 4 ½"
5-pin XLR to dual 3-pin XLR adapter cable
Plastic mic clip
RECOMMENDED (click photo to add to cart)
Knit windscreen ($65) - for open-air stages and video shoots
Brass mic clip ($40) - All-metal mic clip for style, precision, and peace of mind
Copper shock mount ($75) - Cut vibrations from stage rumble and mic stand noise
>
